SOLUTION OVERVIEW

Automated Catalyst Unloading & Loading System

Remote operation with telescopic arms and 360-degree coverage from a single manway. Eliminating prolonged entry into confined nitrogen environments.

Designed by catalyst industry specialists with more than 150 years of combined experience.

Get in touch with our team

Watch full video

95%
Reduction in overall HS and E risk
100%
Remote operation capability
360°
Complete reactor coverage
150+
Years of catalyst handling expertise

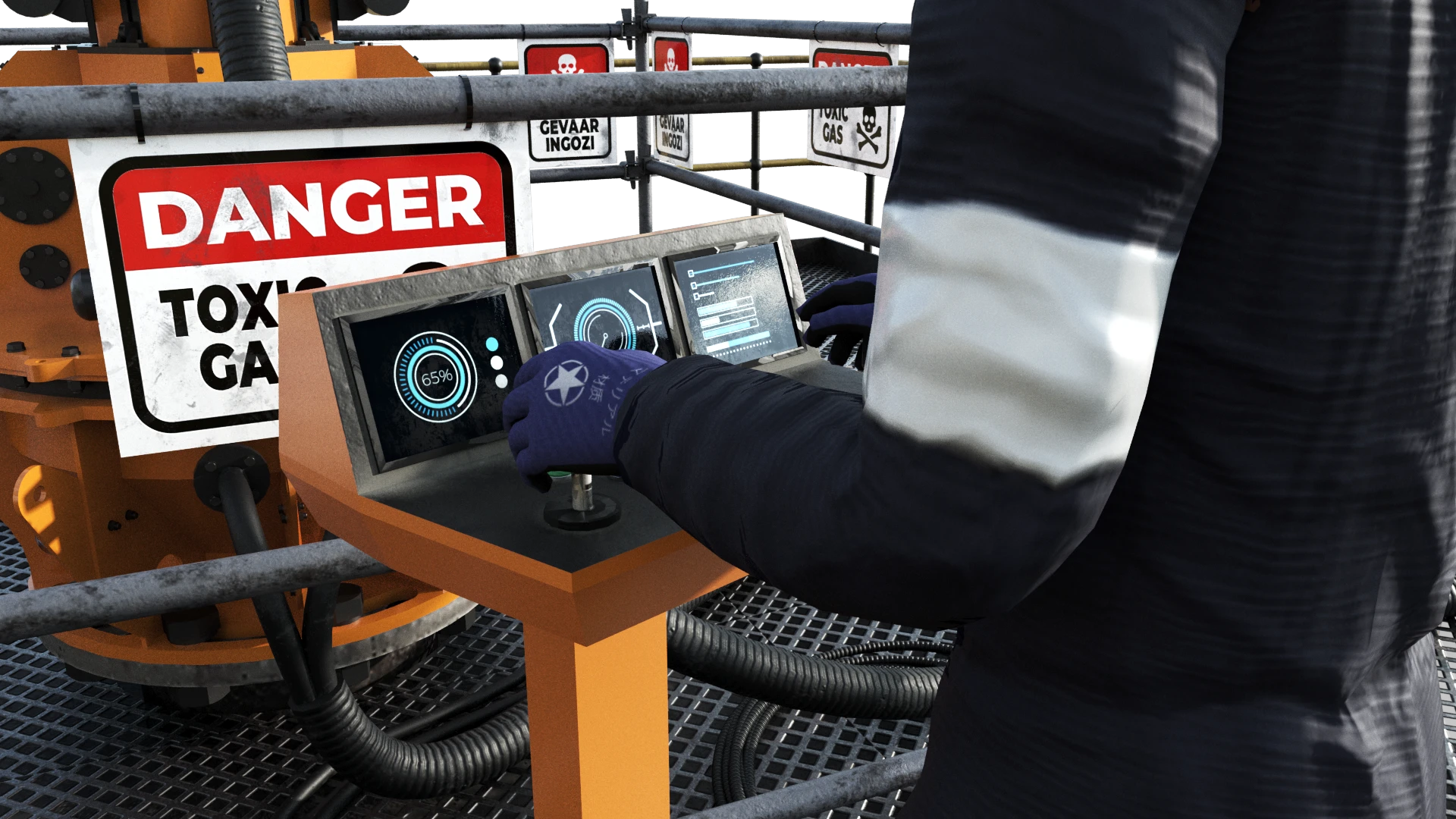

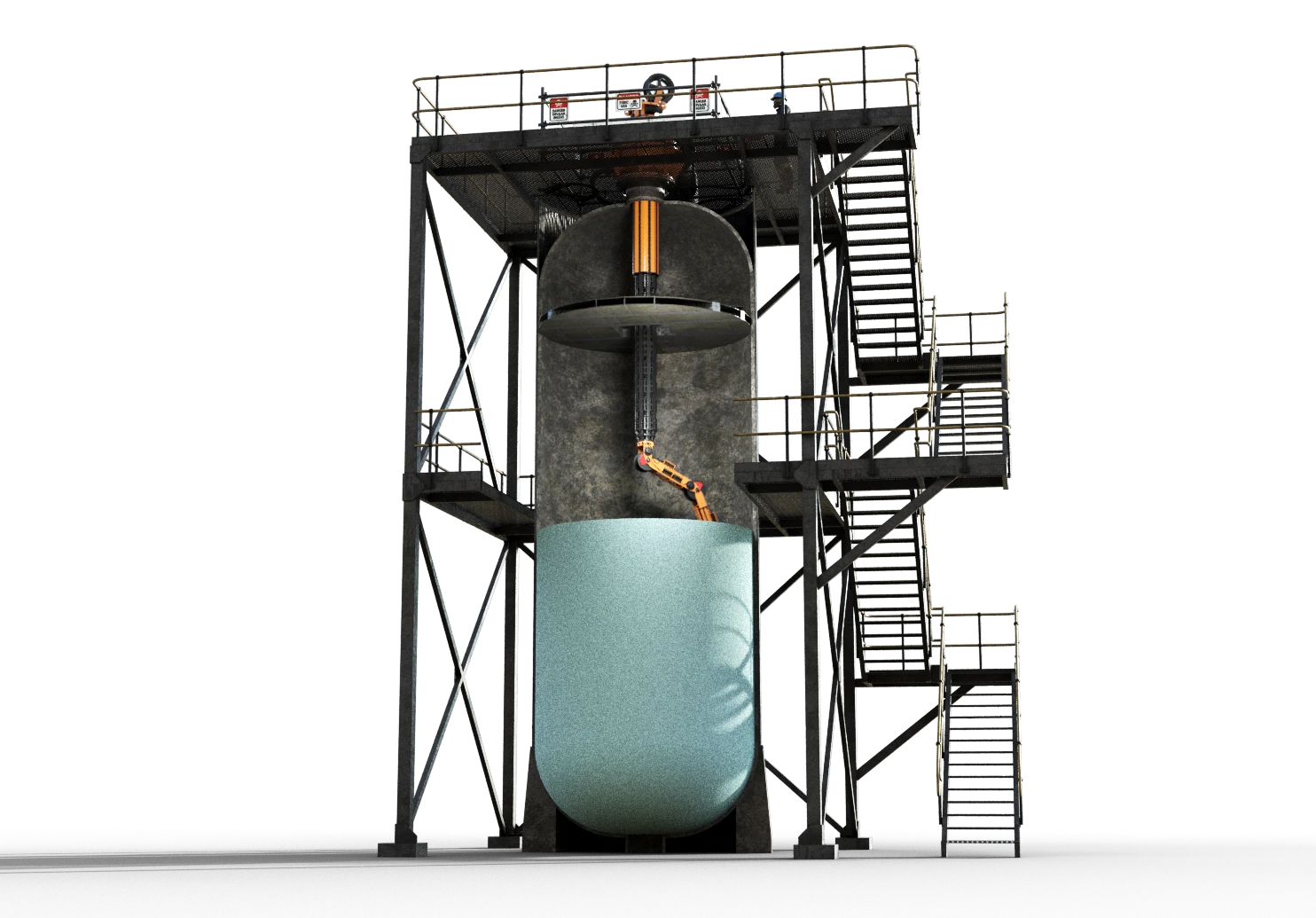

Remote catalyst handling from outside the vessel

Personnel control the system from a safe location using cameras and a remote console.

  • Minimises confined space entry into hazardous or inert atmospheres
  • Continuous vacuum operations without periodic personnel change outs improves efficiency
  • Reduced confined space entry permitting requirements support further time saving
cattracer-automateed-catalyst-handling-solutions-03
cattracer-automateed-catalyst-handling-solutions-04

Continuous unloading and controlled reloading

Unloading

  • The vessel can remain sealed during poor conditions
  • Zero dust emissions at the top manway during unloading
  • Nitrogen return and purge capability can reduce nitrogen usage
  • Optional pneumatic chipping hammer for agglomerated or crusted catalyst

Reloading

  • Convertible for catalyst reloading and interconnectable with most dense loading machines
  • Optional rotational levelling capability

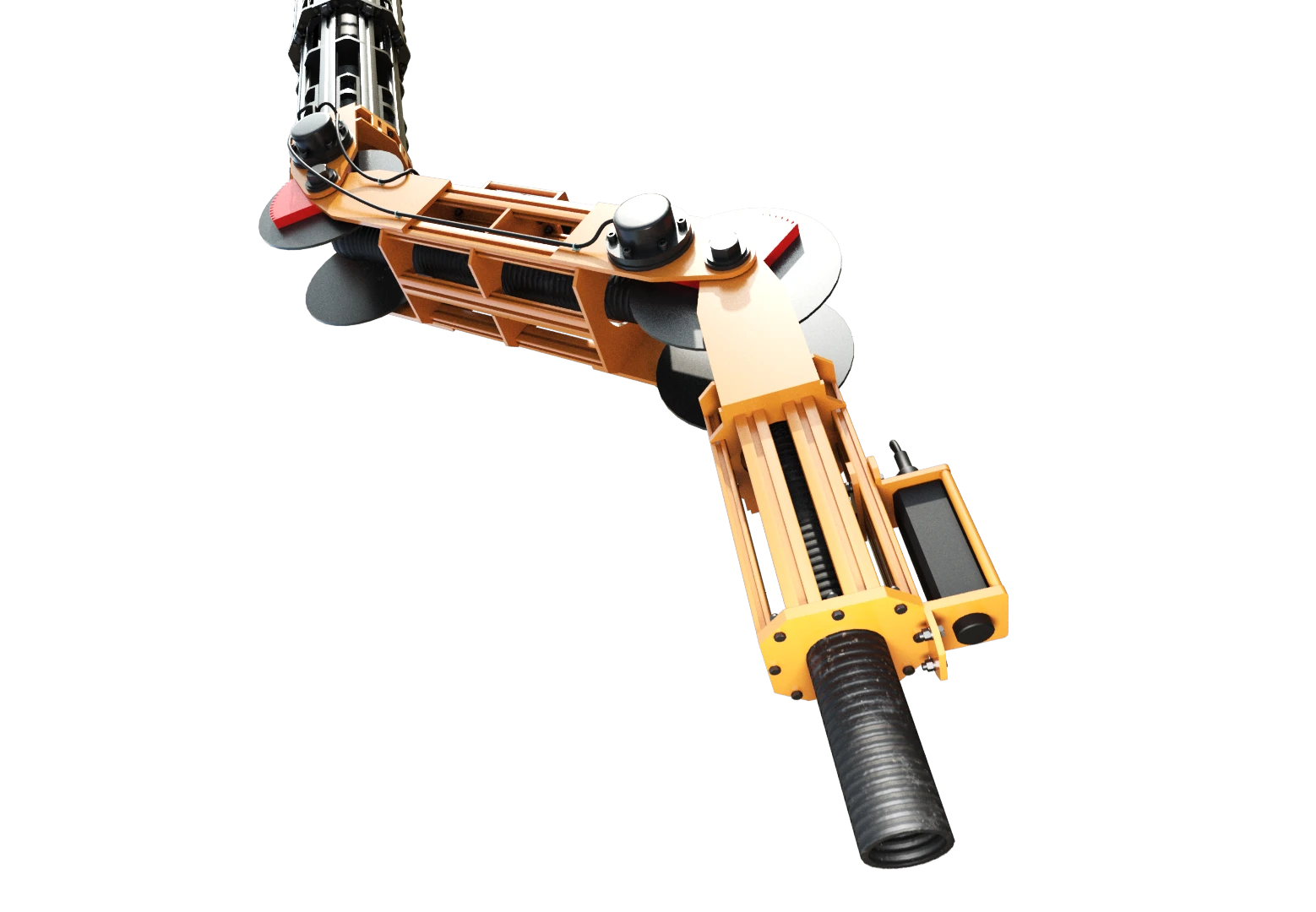

360-degree coverage with precision control

The telescopic frame extends from the manway and reaches every part of the reactor without repositioning the main unit. Operators work from a remote control station positioned in a safe area with real-time feedback.

Operators control and view the operation remotely using integrated cameras and a remote console.

Single

ENTRY POINT REQUIRED

3 Cameras

REAL-TIME VISION

cattracer-automateed-catalyst-handling-solutions-05
cattracer-automateed-catalyst-handling-solutions-ship

Mobilisation and shipping

  • Ships in a standard 20-foot sea container for international movement. The vessel can remain sealed during poor conditions
  • On-site deployment can be managed with the existing plant lifting and rigging
  • Service replacement parts can be kept on site in the shipping container to support uptime

Ready to discuss CatTRACER™ for your facility?
